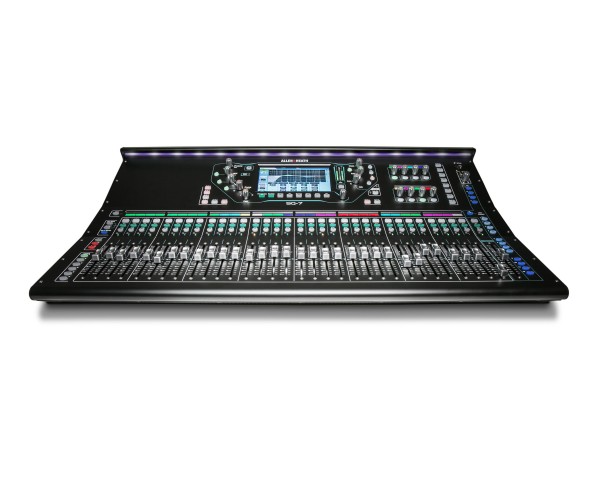

SQ7 48 Channel 96KHz Digital Mixer

SQ-7 is the 33-fader flagship console in the SQ series, powered by Allen & Heath’s revolutionary 96kHz XCVI FPGA engine. Created to excel in demanding scenarios such as AV, corporate events, live productions and houses of worship, SQ-7 offers pristine high-resolution audio quality and an ultra-low latency of <0.7ms. The console features 32 exceptional on board mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.

  • General

    • Mic/Line Inputs: Balanced XLR, fully recallable
      • Input Sensitivity: -60 to +0dBu
      • Switchable Pad: -20dB
      • Analogue Gain: 0dB to +60dB, 1dB steps
      • Maximum Input Level: +30dBu
      • Input Impedance: >5kΩ
      • THD+N, Unity gain 0dB: 0.002% -92dBu (20Hz-20kHz, AES Direct Out, @0dBu 1kHz)
      • THD+N, Mid gain +30dB: 0.003% -91dBu (20Hz-20kHz, AES Direct Out, @-30dBu INPUT 1kHz)
      • Phantom Power: +48V (+3V / -2V)
    • Stereo Line Inputs
      • ST1, ST2 connectors: Balanced, 1/4″ TRS jack
      • ST3 connector: Unbalanced, stereo 3.5mm Mini Jack
      • Input Sensitivity (ST1, ST2 / ST3): Nominal +4dBu ST1, ST2 / 0dBu ST3
      • Trim: +/-24dB
      • Maximum Input Level (ST1,ST2 / ST3): +22dBu / +18dBu
      • Input Impedance: >7kΩ

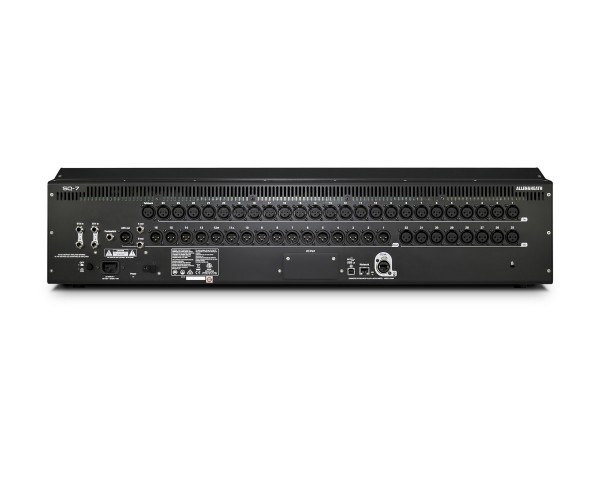

    • Outputs 1-12: Balanced, XLR
    • Outputs A and B: Balanced 1/4″ TRS Jack
      • Source: Patchable
      • Output Impedance: <75Ω
      • Nominal Output: +4dBu = 0dB meter reading
      • Maximum Output Level: +22dBu
      • Residual Output Noise: -90dBu (muted, 20Hz-20kHz)
    • AES Digital Output:
      • Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed)
      • Switchable output sample rates,44.1kHz/ 48kHz/ 88.2kHz/ (96kHz)
      • 2.5Vpp balanced terminated 110Ω
    • Connection: Neutrik EtherCON (RJ45)
    • dsnake mode (48kHz devices)*: 64 channels assignable, compatible with AR2412, AR84, AB168, ME
    • dx mode (96kHz devices): 32 channels assignable*, compatible with DX168
    • gigaACE (96kHz devices): 128 channels assignable, compatible with dLive, SQ and DXHub*
    • Inputs: Fully Patchable
    • Sync/SRC: assignable as master audio sync for all modes, * SRC 64 channel
      • Faders: 100mm motorised
      • Touch Screen: 7″ Capacitive, 800 x 480 resolution, 24 bit RGB
      • SoftKeys: 16
      • SoftRotarys: 8
      • Mute Groups / DCA Groups: 8 / 8
      • Network: TCP/IP Ethernet for MIDI and Control
      • MIDI: TCP/IP and USB B
      • Footswitch: Single or Dual, Momentary or Latching*
    • Source
      • CH1-48: Fully patchable
      • USB Global Source: SQ-Drive or USB B Streaming
  • Polarity: Normal/Invert
  • Trim: -24 to +24dB
  • High Pass Filter: 12dB/octave 20Hz – 2kHz
  • Insert (Pre EQ/Comp): Fully Patchable
  • Delay: Up to 341ms
  • Gate: Patchable Sidechain
    • Sidechain filter: Hi-pass (20-5k), band-pass (120-10k), Lo-pass (120-20k)
    • Threshold / Depth: -72dBu to +18dBu / 0 to 60dB
    • Attack / Hold / Release: 50µs to 300ms / 10ms to 5s / 10ms to 1s
  • PEQ: 4-Band fully parametric, 20-20kHz, +/-15dB
    • Band 1, Band 4: Selectable Shelving (Baxandall), Bell
    • Band 2, Band 3: Bell
    • Bell Width: Variable Q, 1.5 to 1/9th octave
  • Compressor: Patchable Sidechain
    • Sidechain filter: Hi-pass (20-5k), band-pass (120-10k), Lo-pass (120-20k), Q=1
    • Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity
    • Attack / Release: 30µs to 300ms / 50ms to 2s
    • Knee: Soft/Hard
    • Detector response: Peak/RMS switchable
    • Parallel Path Compression: dry/wet -infin to 0dB
  • Channel Direct Out:
    • Follow Fader, Mute, Mute Group, DCA (global all ch)
    • Multi-channel IO option module
  • Inputs: Fully Patchable
  • Outputs: Fully Patchable
  • Sync/SRC:
    • Assignable as master audio sync
    • Measured balanced XLR in to XLR out, 0dB gain, 0dBu input
    • Dynamic Range: 112 dB
    • Frequency Response: +0/-0.5dB 20Hz to 20kHz
    • Headroom: +18dB
    • Internal operating Level: 0dBu
    • THD+N, Mic/Line routed to Main L/R Out: Unity gain faders@0dB, 0.006%, – 84dBu (20 – 20kHz)
    • dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
    • Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
    • Main Meter Type: 2 x 12 segment, fast (peak) response
    • Channel Meter Type: Single Point Metering, fully programmable colour/brightness
    • Peak Indication: -3dBFS (+19dBu at XLR out), multipoint sensing
    • Sampling Rate: 96kHz
    • Bit Depth: Uses XCVI core custom bit widths in algorithms, up to 96bits
    • Latency: <0.7mS, Local Mic Input routed to Main L/R. (Direct, No EQ/ Effects)
    • Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
    • Mains Power: 100-240V AC, 50/60Hz
    • Max Power Consumption: 75W
    • Source select: Post-Preamp, Post-HPF, Post Gate, Insert Return, Post PEQ, Post Comp, Post Delay trim -infin to 10dB per channel
  • Insert (Pre EQ/Comp): Fully Patchable
  • Delay: Up to 682ms
  • GEQ: 28 bands 31Hz-16kHz, +/-12dB Gain, Constant 1/3 oct
  • PEQ: As Input PEQ
  • Compressor: As Input Compressor
    • Internal FX: 8 x RackFX engine, Send>Return or Inserted (4 dedicated fx bus)
    • Types: SMR Reverb, StereoTap Delay, Gated Reverb, ADT, BlueChorus, Symphonic Chorus, Flanger, Phaser
    • 8 dedicated Stereo FX returns: Fader, Pan, Mute, Routing to Mix/LR, 4-Band PEQ
  • PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms
  • Talkback: dedicated input, Assignable to any mix, Gain, Pad, 48V, 12dB/oct HPF
  • Signal Generator: Assignable to any mix, Sine/White/Pink/Bandpass Noise
  • RTA: 31-Bands 1/3 octave 20-20kHz, follows PAFL source
  • SQ-Drive: USB A
    • Stereo Record: 2 channel, WAV, 96kHz, 24-bit, source fully patchable
    • Stereo Playback: 1/2 channel, WAV, 44.1, 48, 96kHz 16,24-bit, source fully patchable
    • Multitrack Record: 16 channel, WAV, 96kHz, 24-bit, track sources fully patchable
    • Multitrack Playback: 16 channel, WAV, 96kHz, 24-bit fully patchable
  • USB Audio Streaming: USB B, Core Audio compliant, ASIO/WDM for Windows
    • Send (upstream): 32 channel, 96kHz, 24-bit
    • Return (downstream): 32 channel, 96kHz, 24-bit

Physical & Dimensions

  • Desk mounted dimensions: 804 x 514.9 x 198 mm (W x D x H)
  • Shipping dimensions: 960 x 685 x 360 mm (W x D x H)
  • Unpacked weight: 17.8 kg
  • Packed weight: 21.9 kg
  • Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
  • Mains Power: 100-240V AC, 50/60Hz
  • Max Power Consumption: 110W

Price £3600.55

contact us for a quote or need any more details on this product
