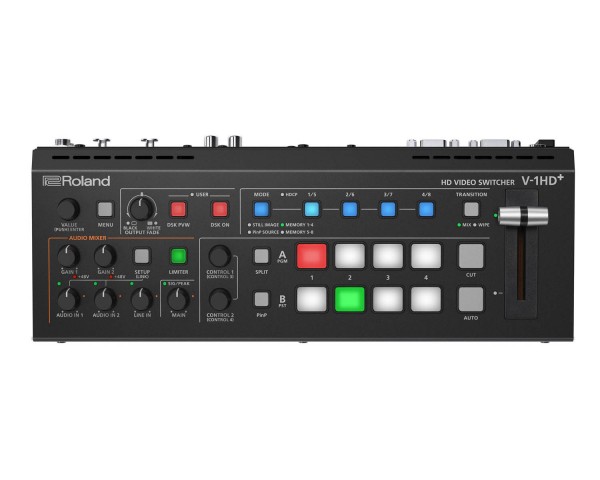

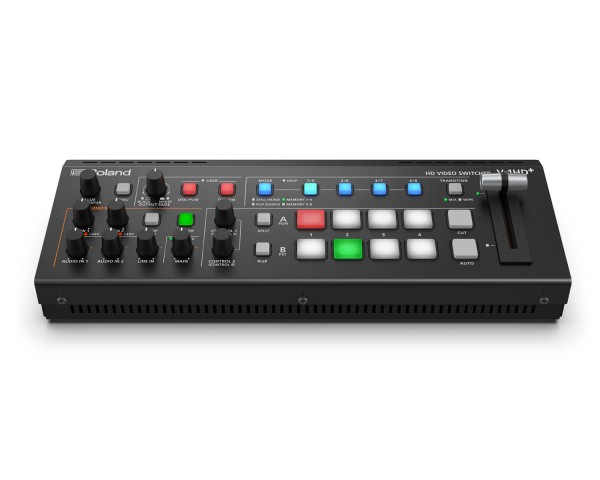

V-1HD+ Advanced Compact HD Video Switcher

The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.

Experience the plus advantage—upgrade your productions with the V-1HD+ today!

Product Video

Product Specifications

VIDEO

Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit

Input Connectors

INPUT 1–3: HDMI type A x 3

INPUT 4: HDMI type A

Output Connectors: OUTPUT 1–2: HDMI type A x 2

Input Formats

INPUT 1–3

720/59.94p, 720/60p 1, 3

720/50p 1, 4

1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p 2, 3

1080/50i, 1080/50p, 1080/25p 2, 4

1080/23.98p, 1080/24p 2

INPUT 4

480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p 1

576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p 2

1080/23.98p, 1080/24p

VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)

FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)

UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)

Still Image:

Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit colour, uncompressed.

PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit colour

Output Formats

OUTPUT 1–2:

720/59.94p 1, 4

720/50p 1, 5

1080/59.94i 2, 4

1080/50i 2, 5

1080/59.94p 3, 4

1080/50p 3, 5

Video Effects

Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)

Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)

Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

AUDIO

Audio Processing: Sample rate: 24 bits/48 kHz

Audio formats: Linear PCM, 24 bits/48 kHz, 2 ch

Input Connectors

INPUT 1–4: HDMI Type A x 4

AUDIO IN 1–2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)

LINE IN: RCA phono type

MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)

Output Connectors

OUTPUT 1–3: HDMI Type A x 2

AUDIO OUT L, R: 1/4-inch TRS phone type

PHONES: Stereo miniature phone type

Nominal Input Level

AUDIO IN 1–2: -60 to +4 dBu (Maximum input level: +24 dBu)

LINE IN: -10 dBu (Maximum input level: +10 dBu)

MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)

Input Impedance

AUDIO IN 1–2: 10 k ohms

LINE IN: 15 k ohms

MIC/AUX IN: 10 k ohms

Nominal Output Level

AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)

PHONES: 72 mW + 72 mW (32 ohms load)

Output Impedance

AUDIO OUT L, R: 600 ohms

PHONES: 10 ohms

Audio Effects: Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output

OTHERS

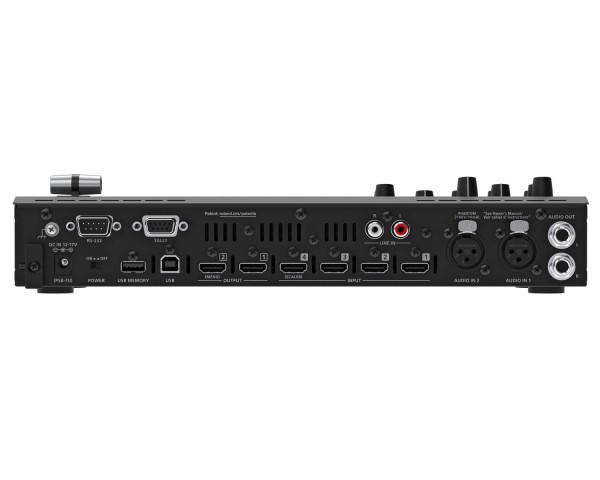

Other Connectors

USB MEMORY: USB A type (for USB flash drive)

REMOTE: USB B type (for remote control)

RS-232: DB-9 type (male, for remote control)

TALLY: DB-9 type (female, for TALLY output)

Other Functions

Preset memory (8 types)

Panel lock function

EDID emulator

Auto switching

Auto input detect

Power Supply: AC adaptor

Current Draw: 2.1 A

Power Consumption: 25.2 W

Operation Temperature

+0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit

PHYSICAL

Dimensions

316 (W) x 121 (D) x 65 (H) mm

12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches

Weight (excluding AC adaptor)

1.4 kg

3 lbs 2 oz

Product Features

Professional HD switching solution for live events, livestreaming, or both at once
Standalone video switcher and 14-channel audio mixer for single operators
Compact and portable for fast set up
Familiar interface that’s quick to learn and easy to use
Technology-assisted automatic video switching
Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
Pro audio I/O with legendary Roland sound quality
Eight memory presets to recall visual layouts on cue

Price £1052.02

contact us for a quote or need any more details on this product
